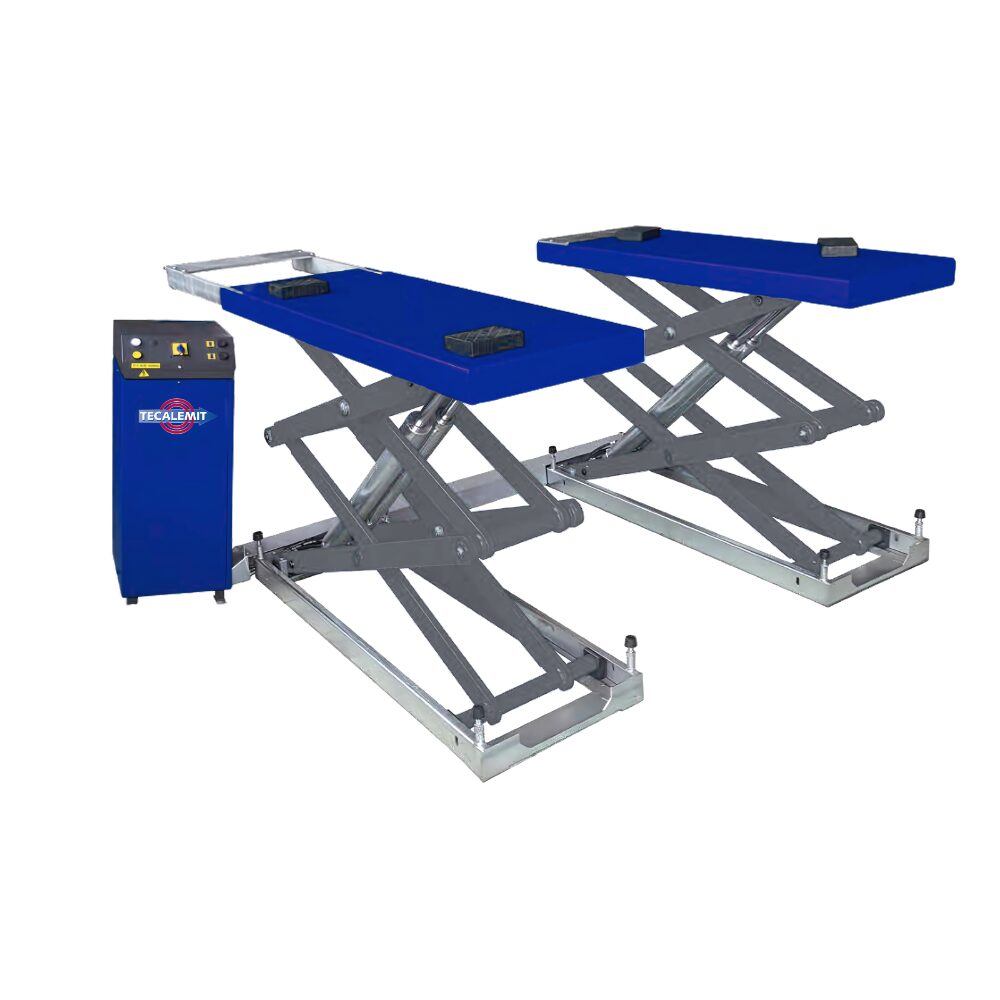

SF7543 Tecalemit In-Ground Scissor Lift
Product Description
The SF7543 is a premium rise scissor lift with a lifting capacity of 3.5 tonnes. It features an automatic runway levelling system with a MASTER/SLAVE hydraulic circuit, along with a photocell safety mechanism that automatically halts the lift if there is any misalignment between the runways. This lift’s durable construction and innovative features prioritise safety and precision, boasting intuitive controls that allow operators to easily manage the lifting process. Despite its robust capabilities, this lift has a compact design, making it suitable for spaces with limited room. Perfect for a variety of vehicles, from passenger cars to light commercial vehicles, the SF7543 accommodates diverse service needs.
Technical Information
Lifting Capacity: 3500 kg
Lifting Time: 40 Seconds
Maximum Height: 1900mm
Motor Size: 3kW
Power Supply: 230 / 400 – 3Ph – 5-/60Hz 230v – 1Ph 1 50Hz
Key Features
- Double Master/Slave system
- No pneumatic locks
- Runway and base with generously sized, self-lubricating sliding pads
- No electronics on the scissor side
- Runway with slide-out extension for precise length adjustment
- No PCB to minimise potential error and simplify the system
- Volume measurement system in the tank for CE/safety stop compliance
- Self-lubricating bushings on all rotating parts
